The Zebra GK420T/GX420T is a thermal transfer label printer which uses a thermal ribbon to print on jewellery or weather-proof labels.

If your Zebra printer does not use transfer ribbon, click HERE.

This printer is used with either Label Manager or Barcode Manager in Retailer.

Installing the Printer & Driver

  1. Open the cover of the printer and make sure that a label roll is present.
  2. Close the cover until it clicks in place.
  3. Make sure the power switch on the back is turned off.
  4. Connect the power cable to both the printer and a power source.
  5. Connect the USB cable to both the printer and the computer.
  6. Turn on the power source and then turn on the printer.
  7. Windows should detect the printer and automatically install a driver for it. A message box will appear when it is complete.

Setting Up the Printer Driver

  1. Once the printer driver is installed, click on the Windows Start Button.
    Without clicking anything else, start typing the words Control Panel and click on the Control Panel icon when it appears in the list of results.
  2. Click on Devices and Printers.
  3. Right-click on your Zebra printer and click Printing Preferences.
  4. Configure the options according to the image below:

  5. Click Apply.

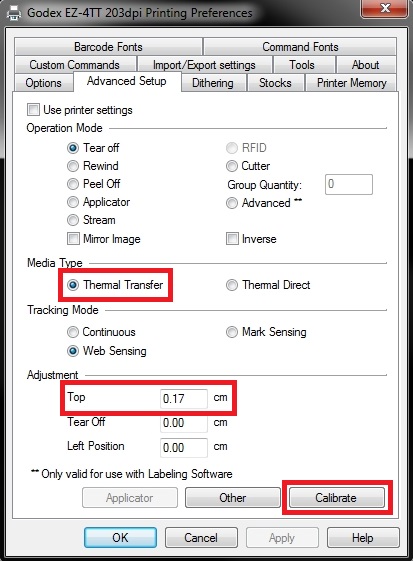

  6. Click on the Advanced Setup tab at the top.
  7. Configure the options according to the image below:

  8. Click Apply.
  9. Click on the Calibrate button. The printer will calibrate and print out some blank labels.
  10. Click OK.

Setting Up Label Printer Settings in Retailer

  1. On the main screen on Retailer, click on Stock -> Label Manager or Barcode Manager
  2. Click on Printer Settings.
    • In Label Printer, select your Zebra printer from the drop-down box.
    • Click OK.
